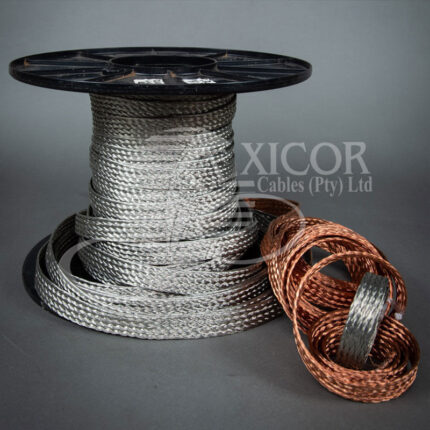

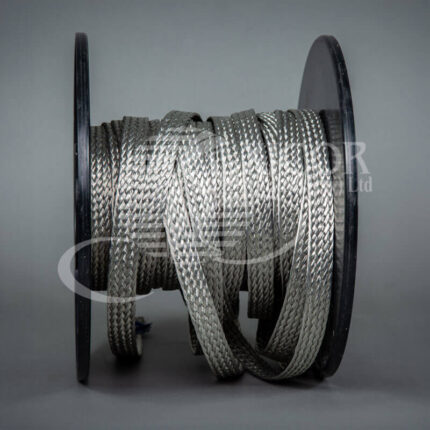

Plain Copper Braids

Description

Used as earthing straps and are also used in numerous electrical components.

Flexible annealded copper conductors in accordance to 1411 Part 1 Class 5 resistance.

Non insulated.

Cut to customer request.

Technical Data:

Part No.	Description	Wire Diameter	Max Amps	Nominal Width of Braid
BC000130R	1,70mm² Plain Copper Braid	0.30mm	18 Amp	± 2,00mm
BC001220	12,00mm² Plain Copper Braid	0.20mm	85 Amp	± 13,00mm
BC001310	13,00mm² Plain Copper Braid	0.10mm	85 Amp	± 13,00mm
BC001616	16,00mm² Plain Copper Braid	0.16mm	120 Amp	± 16,00mm
BC001620	16,00mm² Plain Copper Braid	0.20mm	120 Amp	± 16,00mm
BC002010	20,00mm² Plain Copper Braid	0.10mm	120 Amp	± 18,00mm
BC002020	20,00mm² Plain Copper Braid	0.20mm	120 Amp	± 22,00mm
BC002510	25,00mm² Plain Copper Braid	0.10mm	150 Amp	± 25,00mm
BC003510	35,00mm² Plain Copper Braid	0.10mm	195 Amp	± 35,00mm
BC003520	35,00mm² Plain Copper Braid	0.20mm	195 Amp	± 27,00mm
BC003610	36,00mm² Plain Copper Braid	0.10mm	195 Amp	± 30,00mm
BC005030	50,00mm² Plain Copper Braid	0.30mm	250 Amp	± 36,00mm
BC007031	70,00mm² Plain Copper Braid	0.30mm	300 Amp	± 40,00mm
BC009530	95,00mm² Plain Copper Braid	0.30mm	360 Amp	± 40,00mm
BC010030	100,00mm² Plain Copper Braid	0.30mm	360 Amp	± 50,00mm
BC015030	150,00mm² Plain Copper Braid	0.31mm	480 Amp	± 46,00mm
BC020030	200,00mm² Plain Copper Braid	0.30mm	570 Amp	± 75,00mm
BC024030	240,00mm² Plain Copper Braid	0.30mm	670 Amp	± 60,00mm

BC000130R

Description: 1,70mm² Plain Copper Braid

Wire Diameter: 0,30mm

Max Amps: 18 Amp

Nominal Width of Braid: ± 2,00mm

BC001220

Description: 12,00mm² Plain Copper Braid

Wire Diameter: 0,20mm

Max Amps: 85 Amp

Nominal Width of Braid: ± 13,00mm

BC001310

Description: 13,00mm² Plain Copper Braid

Wire Diameter: 0,10mm

Max Amps: 85 Amp

Nominal Width of Braid: ± 13,00mm

BC001616

Description: 16,00mm² Plain Copper Braid

Wire Diameter: 0,16mm

Max Amps: 120 Amp

Nominal Width of Braid: ± 16,00mm

BC001620

Description: 16,00mm² Plain Copper Braid

Wire Diameter: 0,20mm

Max Amps: 120 Amp

Nominal Width of Braid: ± 16,00mm

BC002010

Description: 20,00mm² Plain Copper Braid

Wire Diameter: 0,10mm

Max Amps: 120 Amp

Nominal Width of Braid: ± 18,00mm

BC002020

Description: 20,00mm² Plain Copper Braid

Wire Diameter: 0,20mm

Max Amps: 120 Amp

Nominal Width of Braid: ± 22,00mm

BC002510

Description: 25,00mm² Plain Copper Braid

Wire Diameter: 0,10mm

Max Amps: 150 Amp

Nominal Width of Braid: ± 25,00mm

BC003510

Description: 35,00mm² Plain Copper Braid

Wire Diameter: 0,10mm

Max Amps: 195 Amp

Nominal Width of Braid: ± 35,00mm

BC003520

Description: 35,00mm² Plain Copper Braid

Wire Diameter: 0,20mm

Max Amps: 195 Amp

Nominal Width of Braid: ± 27,00mm

BC003610

Description: 36,00mm² Plain Copper Braid

Wire Diameter: 0,10mm

Max Amps: 195 Amp

Nominal Width of Braid: ± 30,00mm

BC005030

Description: 50,00mm² Plain Copper Braid

Wire Diameter: 0,30mm

Max Amps: 250 Amp

Nominal Width of Braid: ± 36,00mm

BC007031

Description: 70,00mm² Plain Copper Braid

Wire Diameter: 0,30mm

Max Amps: 300 Amp

Nominal Width of Braid: ± 40,00mm

BC009530

Description: 95,00mm² Plain Copper Braid

Wire Diameter: 0,30mm

Max Amps: 360 Amp

Nominal Width of Braid: ± 40,00mm

BC010030

Description: 100,00mm² Plain Copper Braid

Wire Diameter: 0,30mm

Max Amps: 360 Amp

Nominal Width of Braid: ± 50,00mm

BC020030

Description: 200,00mm² Plain Copper Braid

Wire Diameter: 0,30mm

Max Amps: 570 Amp

Nominal Width of Braid: ± 75,00mm

BC024030

Description: 240,00mm² Plain Copper Braid

Wire Diameter: 0,30mm

Max Amps: 670 Amp

Nominal Width of Braid: ± 60,00mm

All the sizes are available in PVC covered, i.e: Black, Clear, Green/Yellow in solid or translucent (which the latter is recommended).
